10G SFP+ Direct Attach Copper (DAC) Cable for cnWave, 2.0m, -40C to 85C
Details
The Direct Attach Copper Cable (DAC) makes it easier, less expensive and more reliable to deploy cnWave radios ‘back-to-back’, eliminating the need for separates SFP modules and cable terminations. The DAC cable can also be used for connecting distribution switches to co-located core switches. The Cambium DAC cable delivers rates up to 10 Gbps, is two meters long and, importantly for outdoor applications, operates from -40°C to +85°C.
Benefits of using the DAC cable:
1. Eliminates the need to buy two SFP+ transceivers and a compatible optical cable, resulting in reduced inventory management.
2. DAC cables are factory terminated and ensure watertight sealing
3. Prevents installer errors when terminating optical cables to SFP+ transceivers.
4. The overall cost of using the DAC cable solution is much lower than individually buying the SFP+ transceivers and optical cables.
DAC use cases:

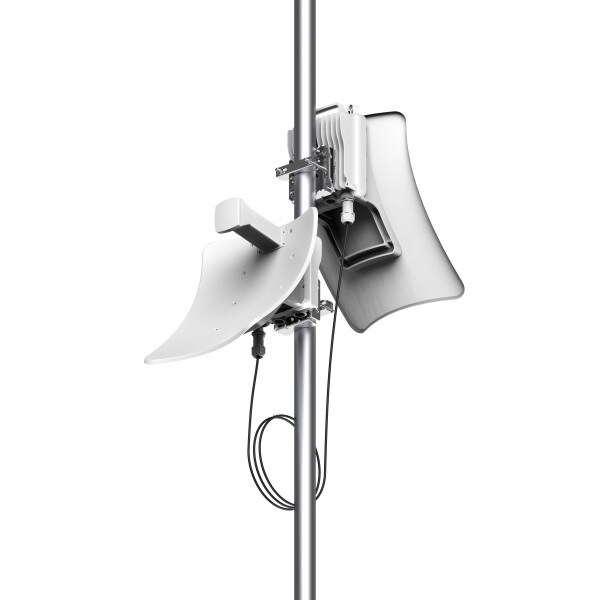

Connecting a 60 GHz cnWave™ V3000-to-V3000 backhauled link

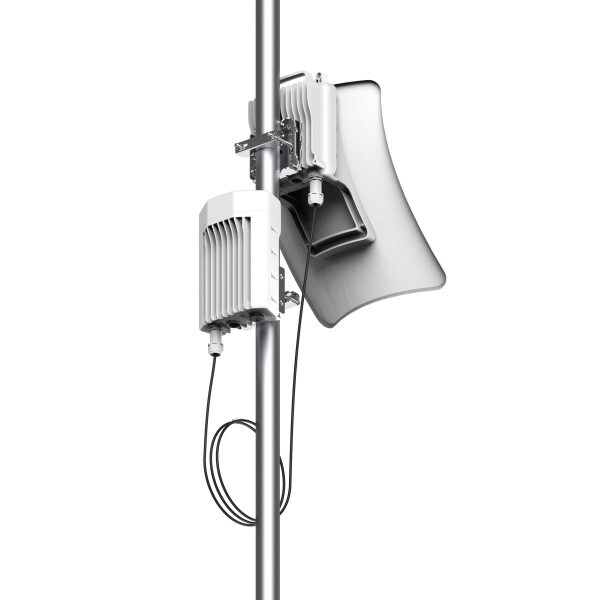

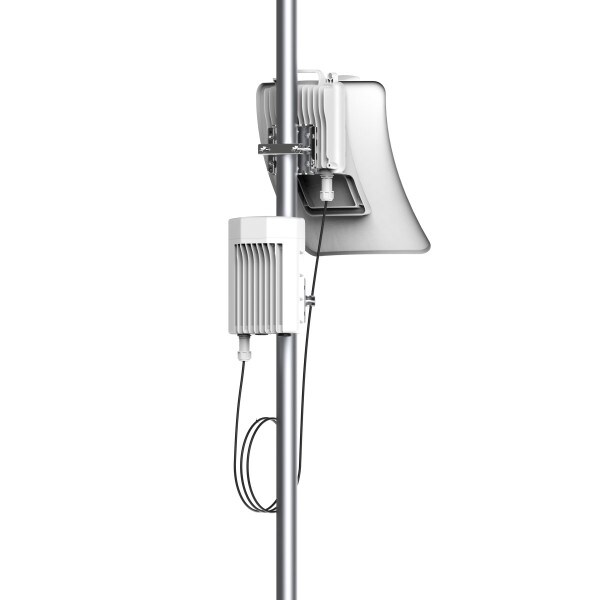

Connecting a 60 GHz cnWave™ V5000 backhauled by V3000
Connecting a Distribution layer switch to a core switch
Note: The recommended Cable gland to be used with the DAC cable for 60 GHz cnWave products is Part #: C000000L176A, Cable Gland for 6mm cable, M25
