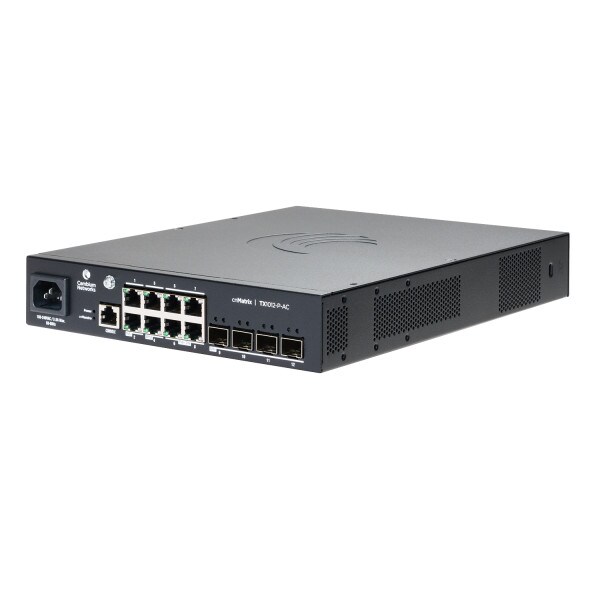

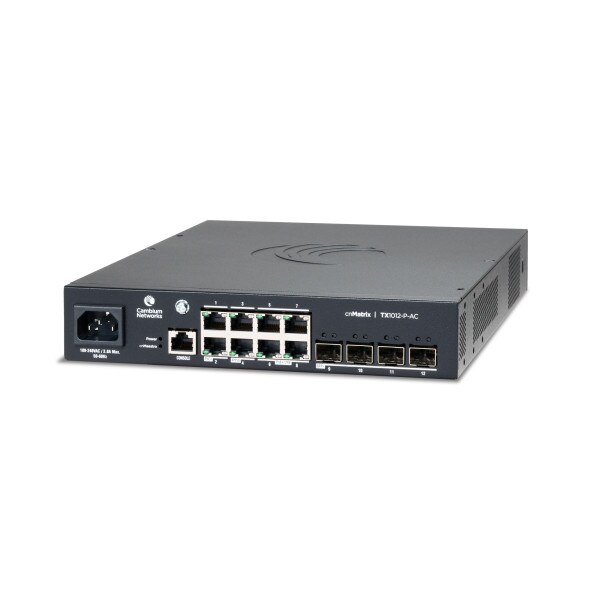

cnMatrix TX1012-P-AC, AC Powered Intelligent Ethernet PoE Switch, 8 x 1Gbps, and 4 SFP+, no pwr cord, USA Only
Details
The cnMatrix™ TX1012-P-AC switch is the first of a new TX 1K series of switches specifically designed for broadband service provider networks. The TX1012-P-AC switch combines intelligent Power over Ethernet (PoE), a full suite of enterprise grade Layer 2 and Layer 3 features, and flexible power options that come as an AC powered switch.
This switch has 8 10/100/1000 Mbps ethernet ports and 4 SFP+, 10 Gbps fiber uplink ports. The TX1012-P-AC switch is fully managed and is supported in cnMaestro™ to provide an end-to-end view of the wired-wireless network.
The cnMatrix TX1012-P-AC provides the following functionality:
Comprehensive/Intelligent PoE solution
• 802.3af/at/bt - up to 90W
• 24V Passive PoE - up to 15W
• 54V Passive PoE - up to 90W

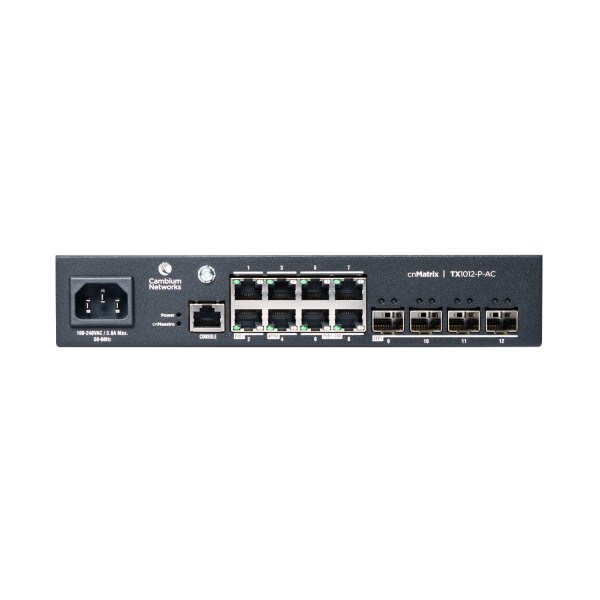

All interfaces located on front panel
The cnMatrix platform of switches provides:
• Full Line Rate, non-blocking architecture
• Easy and simple, free cloud (or on premise) management with
cnMaestro™ or XMS*
• Zero-touch deployment of switches makes installation easy
• Policy Based Automation eliminates manual and time
consuming configuration
• Enhanced Security with automated device profiling and
segmentation
• Policy Based Automation eliminates manual configuration
during adds, moves and changes of network devices
• Unified Wired-Wireless access solution.
This switch has 8 10/100/1000 Mbps ethernet ports and 4 SFP+, 10 Gbps fiber uplink ports. The TX1012-P-AC switch is fully managed and is supported in cnMaestro™ to provide an end-to-end view of the wired-wireless network.
The cnMatrix TX1012-P-AC provides the following functionality:
Comprehensive/Intelligent PoE solution
• 802.3af/at/bt - up to 90W
• 24V Passive PoE - up to 15W
• 54V Passive PoE - up to 90W
All interfaces located on front panel
The cnMatrix platform of switches provides:
• Full Line Rate, non-blocking architecture
• Easy and simple, free cloud (or on premise) management with
cnMaestro™ or XMS*
• Zero-touch deployment of switches makes installation easy
• Policy Based Automation eliminates manual and time
consuming configuration
• Enhanced Security with automated device profiling and
segmentation
• Policy Based Automation eliminates manual configuration
during adds, moves and changes of network devices
• Unified Wired-Wireless access solution.
