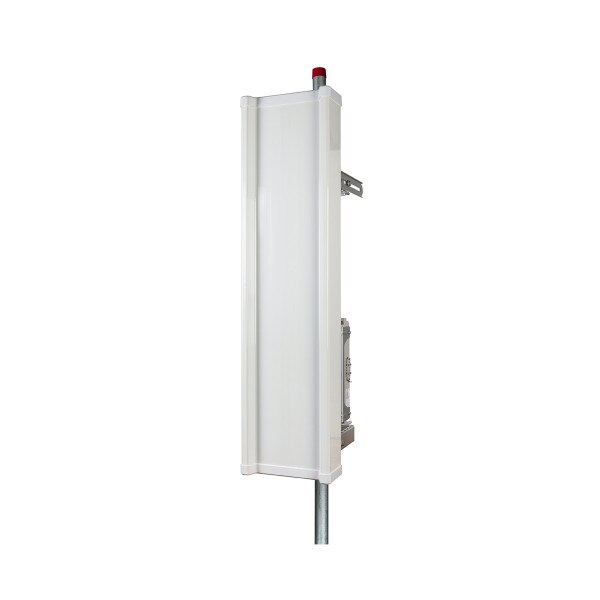

cnRanger 90 Sector Antenna
Cambium Networks 2LTE-ANT-90
cnRanger 90 Sector Antenna
The cnRanger™ Fixed LTE wireless platform from Cambium Networks substantially increases range and coverage, while reducing the cost and complexity typically associated with LTE networks.
Features:
- Optimized coverage for fixed wireless deployment
- Innovative antenna design
- Simplified design to attach RRH
Specifications 2LTE-ANT-90
Name | 2.3 -2.7 GHz LTE 90 Degree Sector antenna |
Frequency Range | 2300 MHz to 2700 MHz |
Gain | 16 dBi |
VSWR | 2:1 max |
3 dB Beamwidth - Azimuth | 90° |
6 dB Beamwidth - Azimuth | 120° |
3 dB Beamwidth - Elevation | 7° |
Pattern Roll Off at Sector Edge | 12 dB |
Electrical Downtilt | -2° |
Polarization | Slant, +/- 45 Degrees |
Front-to-Back Isolation | >25 dB |
Cross Polarization | >16 dB |
Port-to-Port Isolation | > 20 dB |
Maximum Input Power | 5 W |
Input Impedance | 50 Ohms |
Mounting Connectors | N Type |
Mounting Hardware | Included for mounting to mast diameters 2" to 4.5" (5.1 cm to 11.4 cm), -10° to 5° tilt. RRH mounts directly to the rear of the antenna |
PHYSICAL | |
Physical Dimensions | 42.2" (H) x 10.7" (W) x 4.4" (D) (1072 mm x 272 mm x 113 mm) |
Weight | 17 Kg with RRH and mounting equipment |
Environmental | IP66 |
Radome Material | UV Stabilized |
Operating Temperature | -40°C to +85°C |
Rated Wind Velocity | 180 Km/Hr |
